IS3080si Threshold Seal

Ideal for sealing the gap between the door bottom
and the floor - a commonly overlooked area that is
essential to achieve containment.

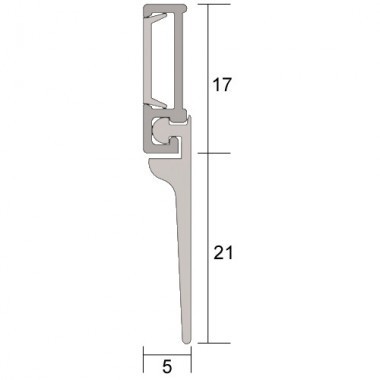

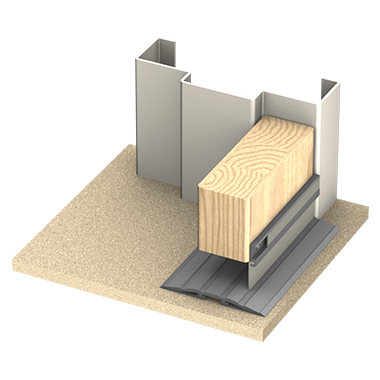

The IS3080si is a sweep action blade seal with a high performance
silicone rubber fin, which can be fitted to door bottoms of outward
opening doors. This seal can also be utilised as a meeting stile
seal for pairs of doors. This seal can provide effective containment
against ambient and medium temperature smoke, sound, dust,
light, insects and weather.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium section with grey silicone gasket
and grey cover strip
• Black anodised aluminium section with black silicone gasket
and black cover strip

Fixing
• Fixing screws are supplied with detailed fitting instructions
• Fixing holes are pre-drilled and slotted to allow the seals to be
easily adjusted and positioned accurately on the door to suit the
appropriate gap size

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
