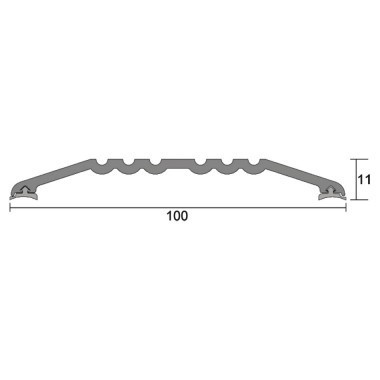

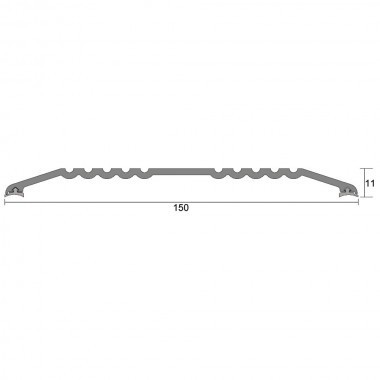

IS4030-45 Threshold Plates

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

These heavy duty, threshold plates are used in conjunction with
other Kilargo door bottom seals to help prevent rain infiltration,
draught and smoke penetration.
These threshold plates have a durable, anodised finish and are
supplied with PVC bedding feet to help eliminate vibration, noise
and moisture ingress.
Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 3250mm
Standard colours
• Silver anodised aluminium
Fixing
• Stainless Steel fixing screws and plugs are supplied
• Alternatively, fasten with builder’s adhesive for concealed fixing
Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
