Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

These stainless steel threshold plates are used in conjunction
with other Kilargo door bottom seals to help prevent rain infiltration,
draught and smoke penetration.

These durable Grade 304 stainless steel threshold plates have
a No. 4 brush finish and are impervious to most chemicals, solvents,
cleaning fluids and disinfectants. They are suitable for external
environments.

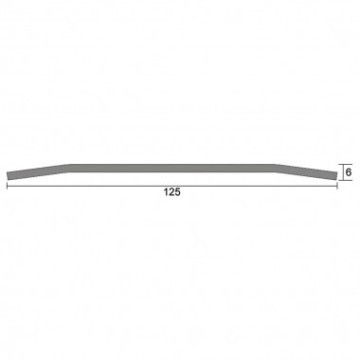

The IS4055S and IS4060S have a low profile design (6mm height),
complying with the ‘access for people with disability’ requirements
of AS1428/1 and NCC D2.15 & D3.3.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 3250mm

Standard colours
• Grade 304 stainless steel with No.4 brush finish

Fixing
• Appropriate stainless steel fixing screws and plugs supplied

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
