IS4070-78is Threshold Ramps

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

These threshold ramps are utilised in buildings where wheelchairs
and trolleys are used or to compensate for uneven floors. Their rate
of incline ensures compliance with the ‘access for people with
disability’ requirement, particularly for wheelchair traffic.
These threshold ramps have a durable, anodised finish and are
supplied with PVC bedding pads to help eliminate vibration, noise
and moisture ingress.

Gradients

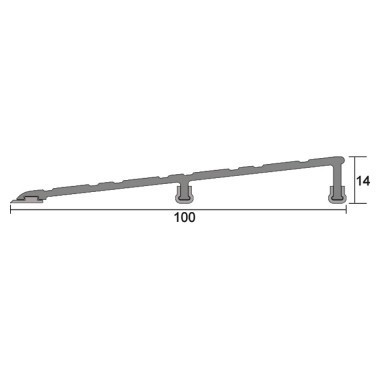

• IS4070 1:8

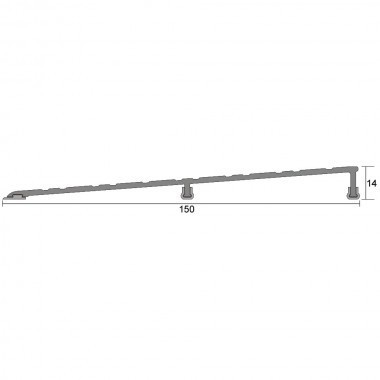

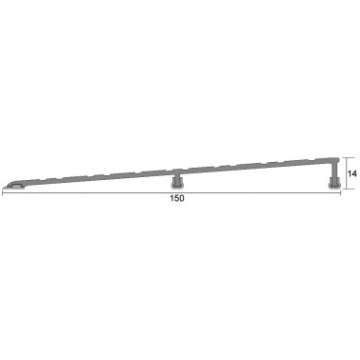

• IS4075 1:12
• IS4077 1:8

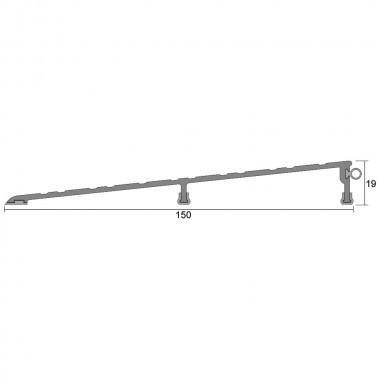

• IS4078si 1:8

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium

Fixing
• Stainless steel fixing screws and plugs supplied
• These extrusions can be positioned back-to-back to provide
a two-way threshold ramp

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428 Part 1 (Design for access and mobility)
• Conforms to BCA D2.15 & D3.3 (Access for people with disabilities)
