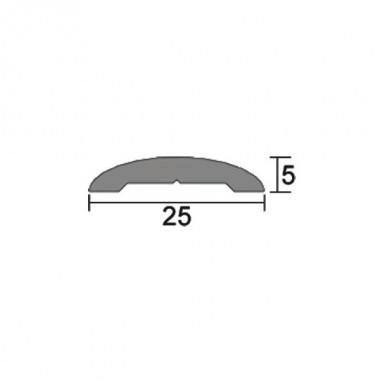

IS4110-30 Threshold Plates

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

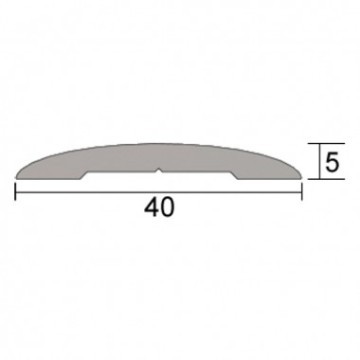

The IS4110, IS4120 and IS4130 threshold plates are used in
conjunction with other Kilargo door bottom seals to help
prevent rain, draughts, and smoke penetration. Their low profile
ensures compliance with the ‘access for people with disability’
requirements, particularly for wheelchair traffic.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium

Fixing
• Stainless steel fixing screws and plugs supplied
• Alternatively, fasten with builder’s adhesive
for concealed fixing

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428 Part 1 (Design for access and mobility)
• Conforms to BCA D2.15 & D3.3 (Access for people with disabilities)
