IS4135 Threshold Plate

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

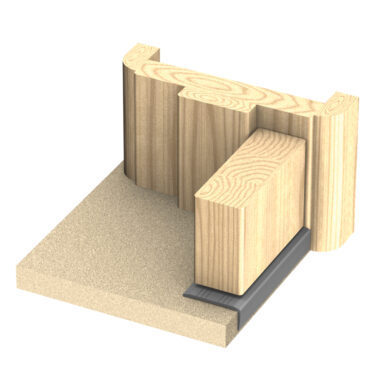

The IS4135 threshold plate/stair nosing is suitable for uneven or
raised door sills to help prevent rain, draughts, and light penetration,
when used in conjunction with a Kilargo door bottom seal.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium

Fixing
• Stainless steel fixing screws and plugs supplied
• Alternatively, fasten with builder’s adhesive for concealed fixing
