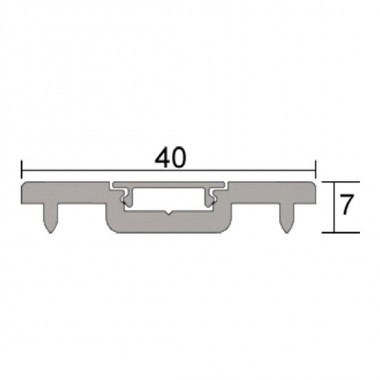

IS4140 Threshold Plate

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

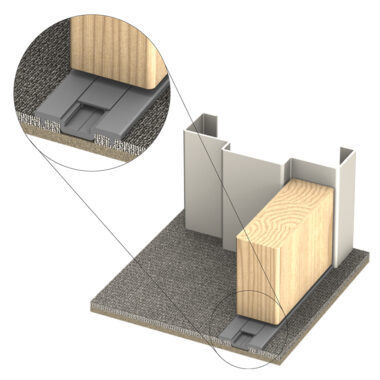

The IS4140 threshold plate is used when a flat sealing surface is
required where carpet runs under the door. It is used in conjunction
with other Kilargo door bottom seals to help prevent draught, insect
and smoke penetration.

Their low profile ensures compliance with the ‘access for people with
disability’ requirements, particularly for wheelchair traffic. The durable,
anodised profile has a snap-fit cover strip for concealed fixings.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium

Fixing
• Stainless steel fixing screws and plugs supplied

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Complies with AS1428/1 (Design for access and mobility)
• Conforms to BCA D2.15 & D3.3 (Access for people with disabilities)
