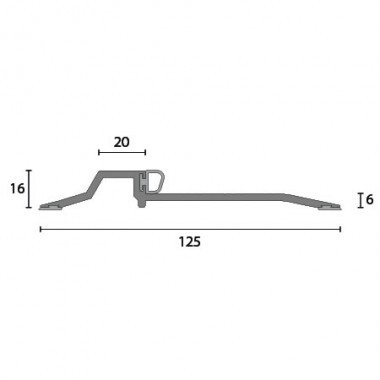

IS4226si Threshold Plate

Threshold plates are fitted to the sill under doors providing
an optimum sealing surface for door bottom seals.
Available in aluminium (and stainless steel options), threshold
plates offer an elevated sealing plane, providing solutions
to excessive resistance often encountered with carpeted,
uneven or sloping floors. Widths from 25mm to 150mm.

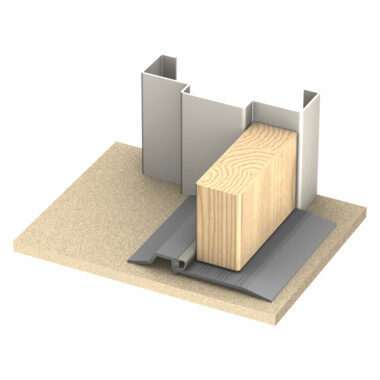

The IS4226si threshold plate and seal is suitable for outward opening
doors to help prevent weather, smoke, light and noise penetration.
The plate has an extended landing area, ideal for high-end acoustic
applications (when used with other sealing combinations).
It may be used with panic type exit devises (supplied by others).

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone rubber gasket
(Black silicone gaskets also available upon request)

Fixing
• Stainless Steel fixing screws and plugs are supplied
Approval/s
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
