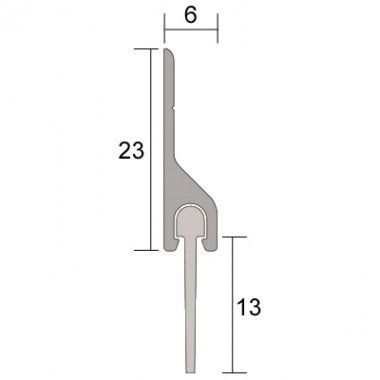

IS5111si-121si Sweep Action Seals

These nylon brush filament and silicone blade type seals
provide alternative sealing solutions to many difficult-to-seal
door configurations, such as double swing leaves, sliding,
revolving and roller shutter doors.

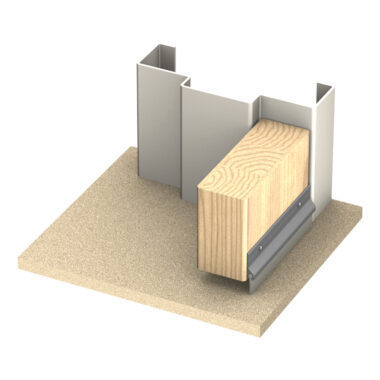

These silicone sweep seals are designed to be used around the
head and jambs, door bottom and meeting stiles of single or
double swing doors, revolving, tilt-up and roller doors. These seals
help protect against ambient and medium temperature smoke,
draught and dust, and weather penetration. The slim line carriers
are aesthetically angled to avoid dust build-up. These seals provide
excellent sealing solutions for pivot action smoke doors and clean
room applications.

Gap size
• IS5111si: Min. 9mm / max. 12mm
• IS5116si: Min. 12mm / max. 19mm
• IS5121si: Min. 19mm / max. 24mm

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium carrier with grey silicone fin
• Black anodised aluminium carrier with black silicone fin

Fixing
• Silicone sweep seals (within carriers) can be screw-fixed
or self-adhered to the desired surface
• Fixing screws and aggressive backing tape are supplied

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies for IS5111si
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191,
IS0140.3 & ISO10140-2
