IS5161Hsi-176Asi Sweep Action Seal

These nylon brush filament and silicone blade type seals
provide alternative sealing solutions to many difficult-to-seal
door configurations, such as double swing leaves, sliding,
revolving and roller shutter doors.

These silicone sweep seals are all utilised to prevent ambient/
medium temperature smoke, draught and dust penetration.

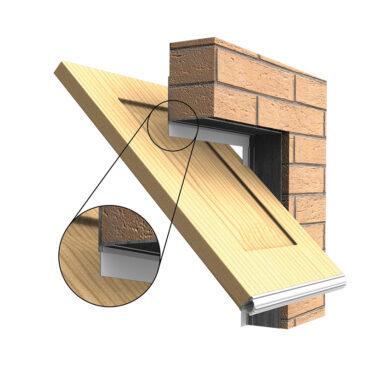

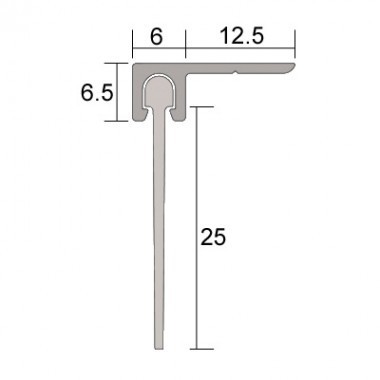

The IS5161Hsi is designed with a 90o angle aluminium carrier for use
on sliding doors. The IS5176Asi seal is designed with a 45o angle
aluminium carrier and is used around the perimeter of roller and
tilt-up doors. The IS5177Asi seal has an angled silicone gasket and
can be utilised around perimeters of automatic pivot and sliding
doors to good effect. The IS5161Hsi and IS5176Asi aluminium carriers
can both be fitted with either a 13mm, 19mm or 25mm silicone fin.

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm
(Fin lengths to be confirmed upon placement of order.)

Standard colours
• Silver anodised aluminium carrier with grey silicone fin
(Black silicone fins are also available upon request)

Fixing

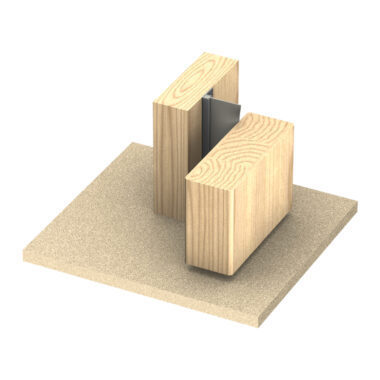

• Silicone sweep seals (within carriers) can be screw-fixed or
self-adhered to the desired surface
• Fixing screws and aggressive backing tape are supplied

Approval/s
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
