IS5175A Sweep Action Seal

These nylon brush filament and silicone blade type seals
provide alternative sealing solutions to many difficult-to-seal
door configurations, such as double swing leaves, sliding,
revolving and roller shutter doors.

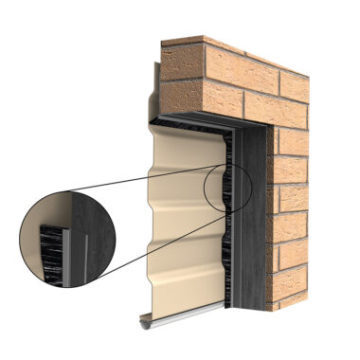

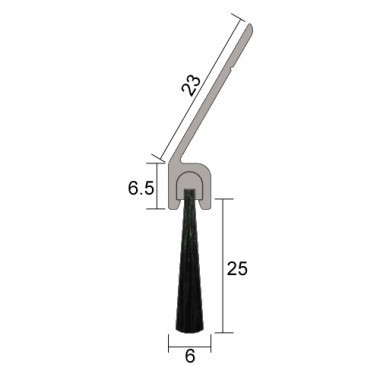

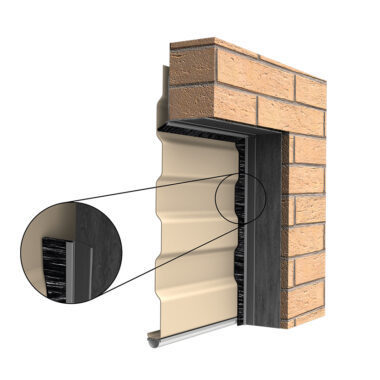

The IS5175A seal is designed with a 45o angle aluminium carrier
and is used to prevent draught and dust penetration around the
perimeter of roller and tilt-up doors.
The angled aluminium carriers can be fitted with either 13mm, 19mm or
25mm black nylon brush.
(50mm brush is also available upon request).

Gap size
• IS5175A: Min. 15mm / max. 21mm (with 19mm brush insert)
(Gap size dependent upon brush size utilised.)

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 3000mm
(Brush lengths to be confirmed upon placement of order.)

Standard colours
• Silver anodised aluminium carrier with black nylon brush

Fixing
• Brush seals (within carriers) can be screw fixed or self-adhered
to the desired surface
• Fixing screws and aggressive backing tape are supplied

Approval/s
• Durability tests demonstrating over 100,000 open and close cycles
