IS7010si-20si Perimeter Seals

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

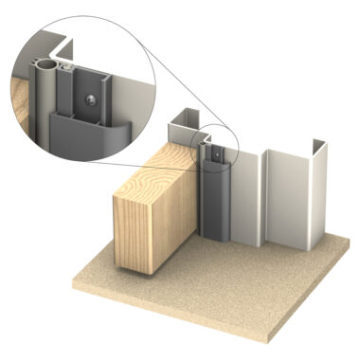

The IS7010si and IS7020si are aesthetically designed,
slim-line compression type perimeter seals for installation around
the head and jambs of single swing doors. They are proven to be
effective acoustic, smoke, light, dust and weather seals.
The aluminium carrier is pre-drilled and slotted for adjustable retrofit
installation. The easy to install, “snap-on”, anodised aluminium cover
plates provide concealed fixings.

Gap size
• Min. 0mm / max. 6mm

Door set standard lengths
• Single: 1 x 1000mm, 2 x 2100mm
• Long Single: 1 x 1000mm, 2 x 2750mm
• Double: 3 x 2100mm
• Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths
• 1000mm
• 2250mm
Also available in individual lengths:
• 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone gasket
(Black silicone gaskets also available upon request)

Fixing
• When fixing IS7020si to rebated frames of single doors, specify
a long back set door latch
* Kilargo does not recommend the installation of profiles
with ‘snap-on’ aluminium cover plates for aluminium door /
frame systems.

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
