IS7090si Perimeter Seal

A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

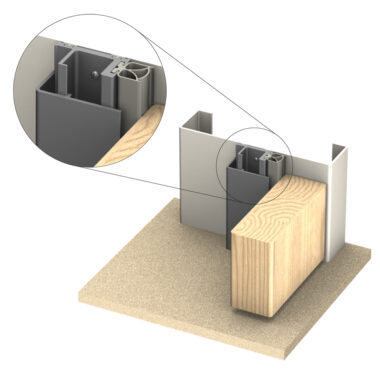

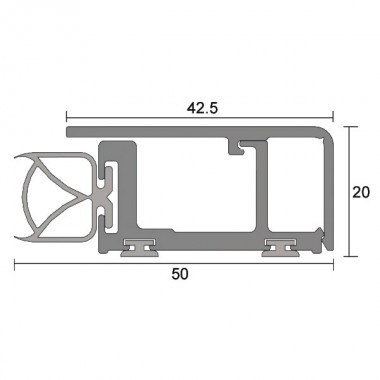

IS7090si self-adjusting and adjustable (spring-loaded) perimeter
seal is designed for high performance acoustic applications. This
seal can be fitted to the head and jambs of door frame perimeters in
lieu of door stops, where frames are non fire-rated.

It’s unique spring loaded mechanism, automatically self-adjusts
to cater for movement or uneven doors. It is also mechanically
adjustable to ensure the desired seal is maintained.

Durable polypropylene fins are incorporated within the gasket
housing to provide additional smoke and acoustic sealing
properties. An aesthetic, anodised aluminium tamper-proof cover
plate simply clips onto the main carrier to conceal fixings.

The IS7090si has been successfully tested on proprietary fire door
assemblies (mounted on a 25mm frame stop).

Gap size
• Min. 0mm / max. 8mm

Door set standard lengths
• Single: 1 x 1000mm, 2 x 2100mm
• Long Single: 1 x 1000mm, 2 x 2750mm
• Double: 3 x 2100mm
• Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone gasket
(Black silicone gasket also available upon request)

Fixing
• When fixing the IS7090si seal to rebated frames of single doors,
specify a long back set door latch
* Kilargo does not recommend the installation of profiles
with ‘snap-on’ aluminium cover plates for aluminium door
frame systems.

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 100,000 open and close cycles
