A comprehensive range of perimeter seals designed
to fit around the head, jambs and meeting stiles of
doors, providing an effective barrier to noise, smoke,
weather and draughts.

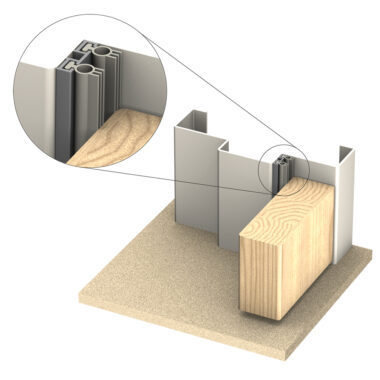

The IS7130si is an effective acoustic seal suitable for fitting to door
stops of sufficient depth, around the head and jambs of single
swing doors. It has two silicone compression gaskets providing
excellent acoustic and air leakage containment. It can also be
rebated into meeting stiles and door bottoms as a sweep-action
type seal.

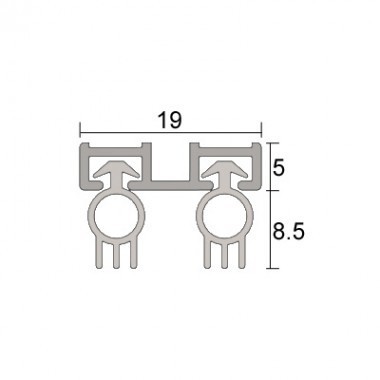

Gap size
• Min. 6mm / max. 8mm (when recessed)
• Allow 12mm to 13mm when surface-mounted

Standard lengths
• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 5000mm

Standard colours
• Silver anodised aluminium with grey silicone gaskets
(Black silicone gaskets also available upon request)

Approval/s
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
