IS8010si Automatic Door Seal

Automatic door bottom seals incorporate a spring-
loaded mechanism that automatically lowers to seal the gap as the door closes and retracts as it is opened. They are available in either face-fixed,
semi-rebated or fully mortised options.

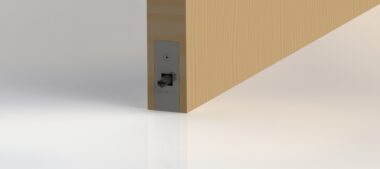

A medium duty, concealed automatic door bottom seal which is
mortised into the bottom edge of single action doors. It operates
automatically by a spring loaded mechanism which lifts the seal
clear of the floor as soon as the door is opened.

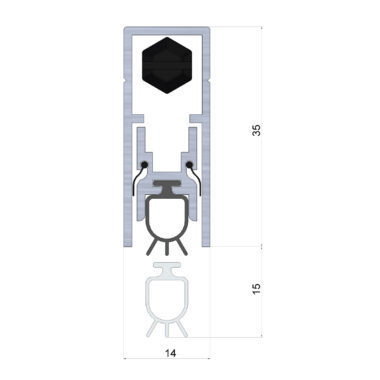

Mounted into a 35mm deep x 15mm wide machined groove, the
seal is screwfixed back into the door stiles via stainless steel end
plates, holding the seal in place. The seal operates automatically
by pressure against the door jamb on its adjustable strike button.
The seal contains a high efficiency mechanism to assist with the
closing force requirements detailed in AS1428/1 (Design for Access
and Mobility).

Gap size
• Min. 3mm / max. 15mm

Standard lengths
• 380mm
• 600mm
• 820mm
• 920mm
• 1070mm
• 1220mm
(*Longer lengths available to special order).

IS8010si maximum allowable cut-back sizes:
• 380mm seal cuts to 275mm
• 600mm seal cuts to 380mm
• 820mm seal cuts to 600mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm
(*Seals can be cut on site for exact dimension).

Standard colours
• Silver anodised aluminium with stainless steel end plates,
grey silicone gasket. (Black silicone gasket also available
upon request.)

Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 1,000,000 open and
close cycles

*Note: Radiused stainless steel end plates also available upon request.
