IS8530si Automatic Door Seal
Automatic door bottom seals incorporate a spring-
loaded mechanism that automatically lowers to seal the gap as the door closes and retracts as it is opened. They are available in either face-fixed,
semi-rebated or fully mortised options.

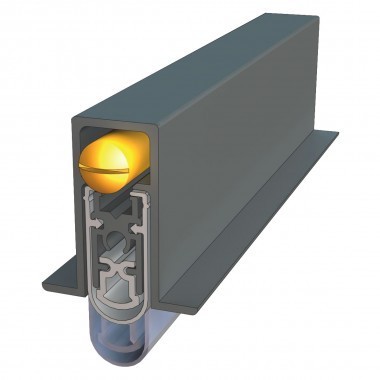

A heavy duty, automatic door bottom seal, designed for high-
performance acoustic door systems, which is fully mortised into the bottom of single action doors. The seal has a spring loaded
mechanism which lifts the seal clear of the floor, in a parallel motion,
as soon as the door is opened.
Pressure against the door jamb on the adjustable brass strike button
operates the seal automatically. The seal is mounted into a 43mm
deep x 21mm wide machined groove along the underside of the door.
The seal is screw-fixed into position through the mounting flanges.
Aesthetic, screw-fixed cast-aluminium end plates ensure longevity
of the seal mechanism.
Gap size
• Min. 6mm / max. 15mm
Standard lengths
• 420mm
• 520mm
• 610mm
• 820mm
• 920mm
• 1070mm
• 1220mm
• 1500mm
(*Longer lengths available to special order)|
IS8530si maximum allowable cut-back sizes:
• 420mm seal cuts to 275mm
• 520mm seal cuts to 420mm
• 610mm seal cuts to 520mm
• 820mm seal cuts to 610mm
• 920mm seal cuts to 820mm
• 1070mm seal cuts to 920mm
• 1220mm seal cuts to 1070mm
• 1500mm seal cuts to 1220mm
(*Seals can be cut on site for exact dimension)
(*Longer lengths available to special order)
Standard colours
• Silver anodised aluminium with cast-aluminium end plates and grey
silicone gasket. (Black cast aluminium end plates and black silicone
gaskets also available upon request.)
Approval/s
• Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
• Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
• Medium temperature smoke leakage approvals to AS1530 Part 7,
compliant with AS6905 on proprietary door assemblies
• Conforms with BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3
and ISO10140-2
• Durability tests demonstrating over 1,000,000 open & close cycles
